单边零件剪脚成型机/手动/散料

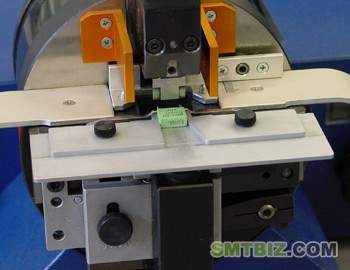

Cutting and Bending machine for radial components
TR-Cutter - Manuel Machine - Inserting the components by hand
The advantages of the TRA for bending and cutting of radial components:
Manufacturing of either loose or belted components
High Precision processing
100% Stressfree processing while crimping and cutting
Fast tool change
For each pitch size and crimping form is one tool needed
Easy setup, below 5 minutes
Same tool type for TR & TRA-Cutter
Same tool type to process 2 or 3 leaded components
Lead length and crimping depth continuously adjustable
Hole distance in tape is 12.7 mm (Option 15.0mm)
| Options TR and TRA | |
| LCF (Loose Component Feeding) | |
|
Art-No.: 106000
 |

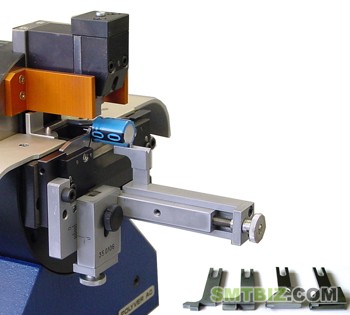

Multi functional LCF 2.Cylindrical components up to DIA 15mm. 3.For each type of components will be 2 different holders delivered. 4.One for regular components and one for extreme fragile components with additional spring release. 5.All holders can be udjusted in all directions. |
|
Art-No.: 107000 |
LCF for flat component bodies 1.Flat component bodies bigger than 8 mm body width.2.Process start by push down the LCF. 3.Component body size adjustable. |
| Tool specification TR/TRA-Cutter | ||||||||
|
Tool I - Distance holding crimp
|
||||||||
  |
C | Cutting length | min 6.0mm | |||||
| Lead diameter | 0.3 - 0.8mm | |||||||
| D | Length below PCB | 1.1 - 2.4mm | ||||||
| B | Pitch size | 2.5mm 5.0mm 7.5mm 10.0mm |
#111000 #110000 #112000 #113000 |
|||||
|
B |
Pitch size TO92 | 5.0mm | #110000 | |||||
| F | Outline measurement | 2.5 mm | ||||||
|
Tool II - Short cutting crimp
|
||||||||
 |
C | Cutting length | min 3.0mm | |||||
| Lead diameter | 0.3 - 0.8mm | |||||||
| D | Length below PCB | 1.6mm | ||||||
| B | Pitch size | 2.5mm 5.0mm 7.5mm 10.0mm 15.0mm 22.5mm 27.5mm |
#121000 #122000 #123000 #124000 #125000 #126000 #127000 |
|||||
|
Tool III - only cutting (short cutting)
|
||||||||
 |
C | Cutting length | min 3.0mm | |||||
| Lead diameter | 0.3 - 1.0mm | |||||||
| B | Pitch size | 2.5-27.5mm | #122000 | |||||
|
Specification of the Tape
|
|||||||
| |
Q | Component width | max 12.0mm | ||||
| X | Component height | max 50.0mm | |||||
| Y | Cutting length | min 5.0mm | |||||
| Z | Tape hole pitch | 12.7mm 15.0mm (Option) |
|||||
| Special shapes on request |
